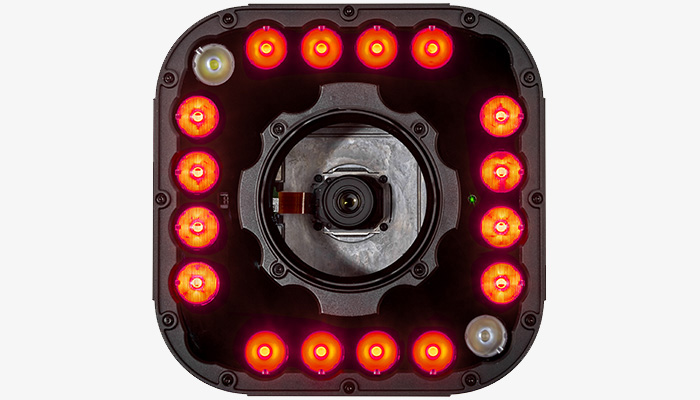

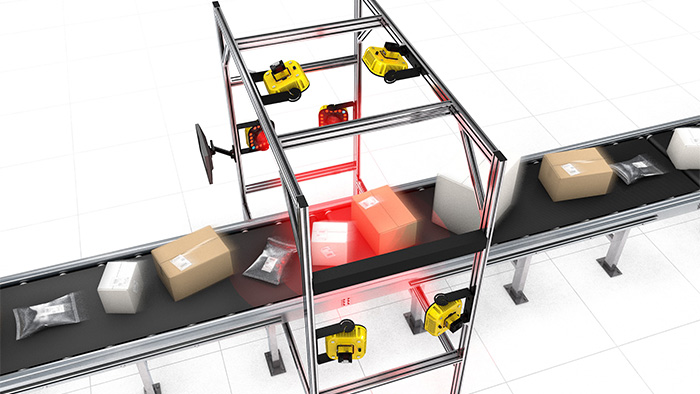

The DataMan 380 is an image-based barcode reader that provides insightful, actionable data by capturing and tracking product and package information in high-speed operations. The DataMan 380 delivers:
Lens Type | C-Mount or Cognex High Speed Liquid Lens Autofocus. |
Trigger | 1 opto-isolated, acquisition trigger input. |
Discreet Inputs |
1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. VIL: ≤ ± 6 V VIH: ≥ ± 12 V I TYP: 4.2 mA @ 24 V |
Discrete Outputs |
Up to 4 outputs when connected to the Breakout cable. I MAX: 50 mA VOL: ≤ ± 3 V @ 50 mA |
Status LEDs | Pass/Fail LED and Indicator Ring, Network LED, and Error LED. |
Codes |
1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, UPC/EAN/JAN 2D barcodes: Data Matrix (ECC 0, 50, 80, 100, 140, and 200), QR Code, PDF 417, MaxiCode |
Network Communication |
2 Ethernet ports, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Supports DHCP, static, and link-local IP address configuration. One port supports TSN networks. RS-232: RxD, TxD according to TIA/EIA-232-F |
Power Consumption |
24 V DC +/- 10% LPS or NEC class 2 Power consumption without USB device attached: Average ≤ 15 W without illumination Average ≤ 40 W with illumination Peak ≤ 2 A |
Power Output | 24 V DC at 1.0 A maximum to external light. |
Material | Die-cast and extruded aluminum housing. |
Finish | Painted. |
Mounting |
Four M3 threaded mounting holes. Pattern: 38.5 × 58.5 mm (1.52 × 2.60 in) |
Weight | DataMan 380 with no accessories attached: 775 g (27.3 oz). |
Case Temperature | 0° C to 40° C (32° F to 122° F) |
Storage Temperature | -20° C to 80° C (-4° F to 176° F) |
Humidity | < 95% non-condensing |
DATAMAN 380 SERIES IMAGE SENSOR SPECIFICATIONS | |||
---|---|---|---|
DM3808 | DM3812 | DM3816 | |
Sensor Type | 1/1.1-inch CMOS | 1/1.1-inch CMOS | 1.1-inch CMOS |
Image Sensor Properties |
Diagonal size: 11.1 mm Pixel size: 2.74 μm (H) x 2.74 μm (V) |
Diagonal size: 14 mm Pixel size: 2.74 μm (H) x 2.74 μm (V) |
Diagonal size: 16.8 mm Pixel size: 2.74 μm (H) x 2.74 μm (V) |
Maximum Image Resolution (pixels) | 2840 × 2840 (8.06 MP) | 4096 x 3000 (12.28 MP) | 5320 x 3032 (16.13 MP) |
Electronic Shutter Speed |
Minimum exposure: 15 μs Maximum exposure: 200 ms |
