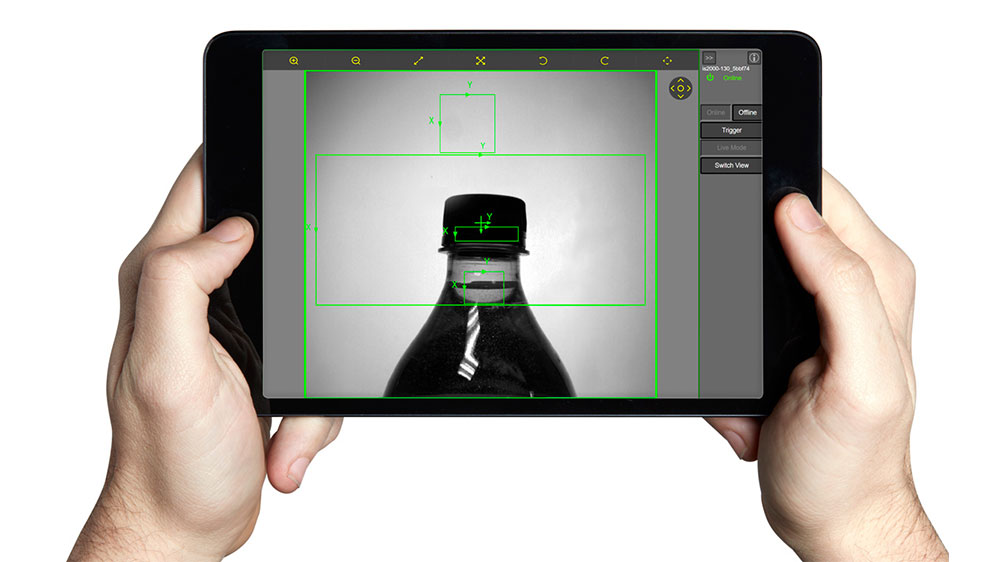

User Interface
|

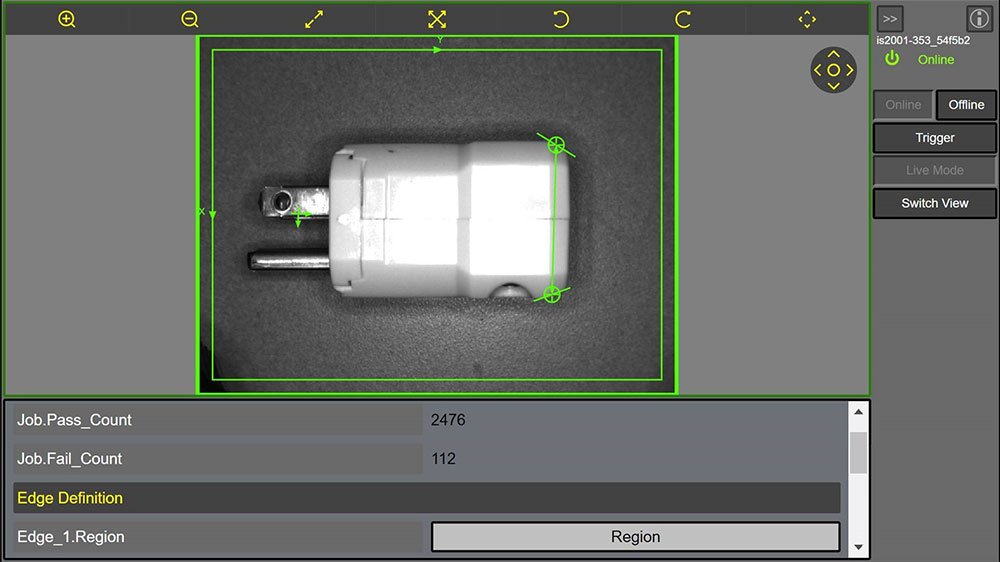

In-Sight Explorer EasyBuilder, Cognex VisionView PC Software and VisionView 900 HMI touchscreen panel
|
|

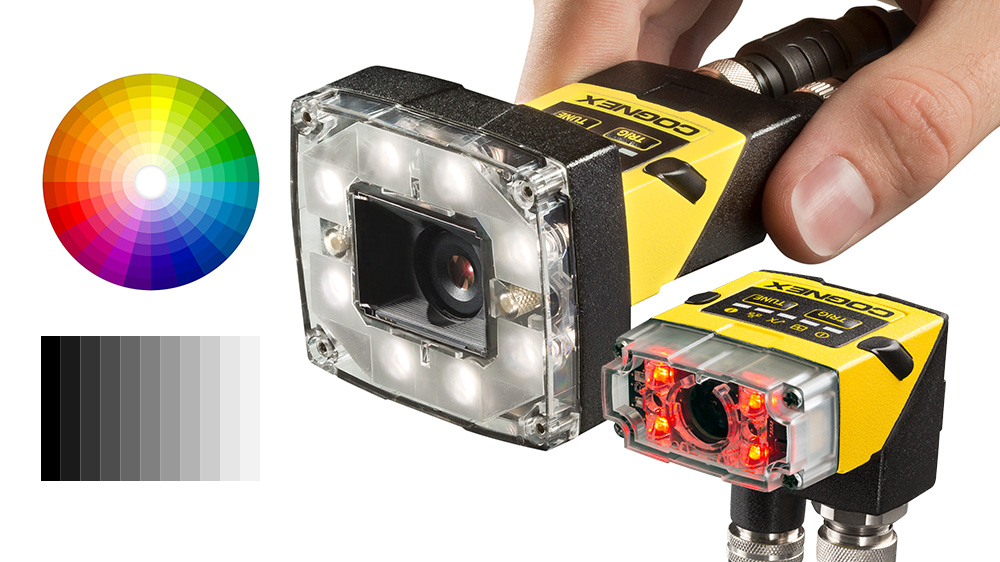

1/3" CMOS Imager
|
Monochrome
|
Monochrome
|
Monochrome
|
Color
|
Color
|
|
S-Mount/M12 Lenses
|
Standard: Autofocus (liquid lens) 6.2 mm or manual focus 8 mm
Optional: Manual focus 3.6 mm, 6 mm, 12 mm, 16 mm, 25 mm
|
| Image Modes |
640 x 480 (standard) |
|
|
|
|
|
| 640 x 480 (2x magnification) |
|
|
|
|
|
| 800 x 600 (2x magnification) |
|
|
|
|
|
|

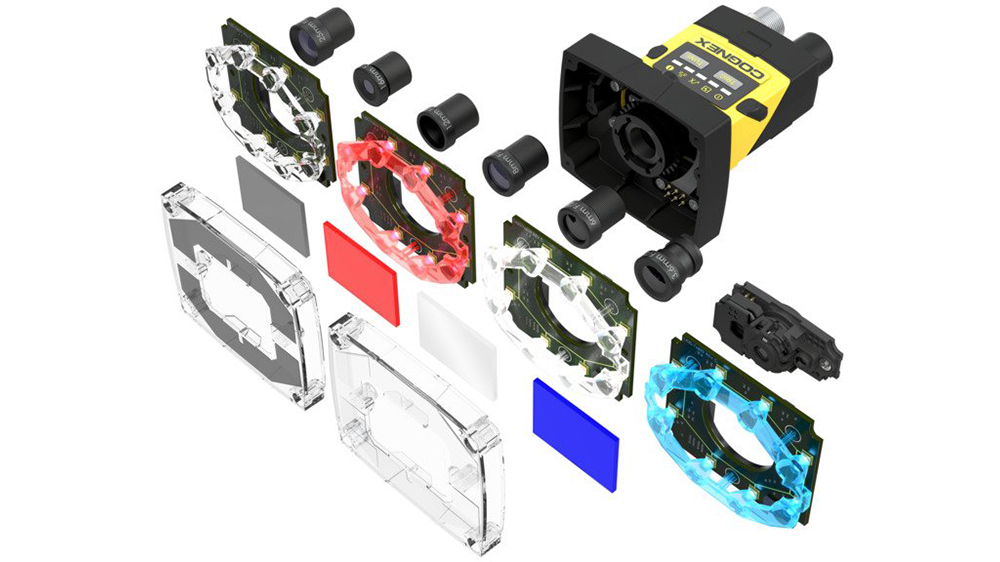

Lighting
|
Standard
|
Diffuse white LED ring light
|
|
Options
|
Red, blue and IR LED ring lights and lens filters, and polarized light cover
|
Polarized light cover
|
| Maximum Acquisition Speed1 |
40 fps |
75 fps |
75 fps |
55 fps |
55 fps |
| Relative Processing Speed |
1x |
2x |
2x |
2x |
2x |
| Location Tools |
Pattern |
|
|
|
|
|
| Edge, Circle |
|
|
|
|
|
| Inspection Tools |
Pattern |
|
|
|
|
|
| Pixel Count |
|
Grayscale |
Grayscale |
Color |
Color |
| Brightness & Contrast |
|
|
|
|
|
| Edges |
|
|
|
|
|
| Measurement & Counting Tools |
Distance, Angle & Diameter |
|
|
|
|
|
| Patterns & Edges |
|
|
|
|
|
|
Communications & I/O
|
Protocols
|
EtherNet/IP, PROFINET, SLMP, SLMP Scanner, Modbus TCP, TCP/IP, UDP, FTP, Telnet (Native Mode), RS-232
|
|
Connectors
|
(1) Industrial M12 Ethernet, (1) M12 Power & I/O
|
|
Inputs & Outputs
|
(1) Acquisition trigger, (1) General purpose input2, (4) General purpose outputs2
|
|
Mechanical
|

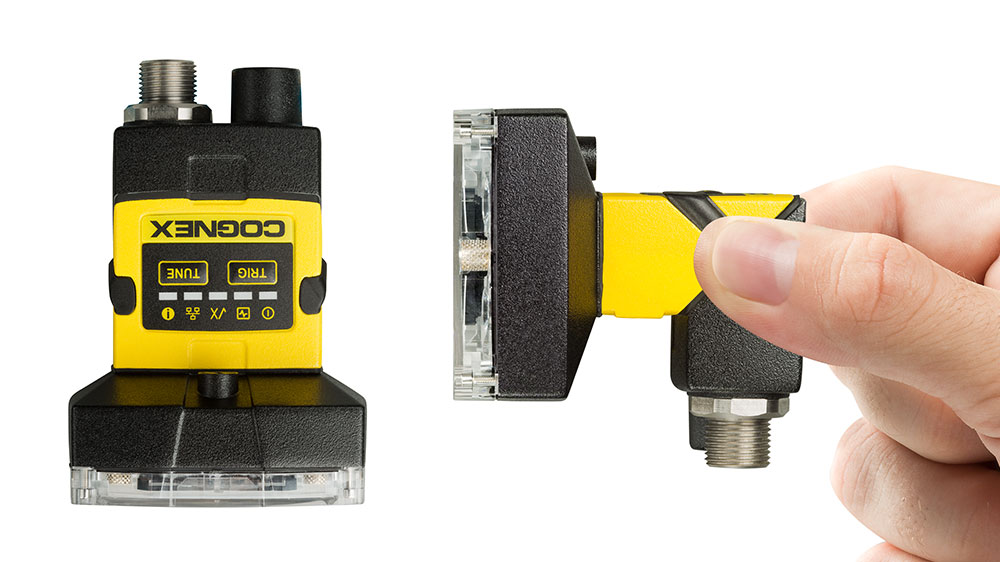

Dimensions
|

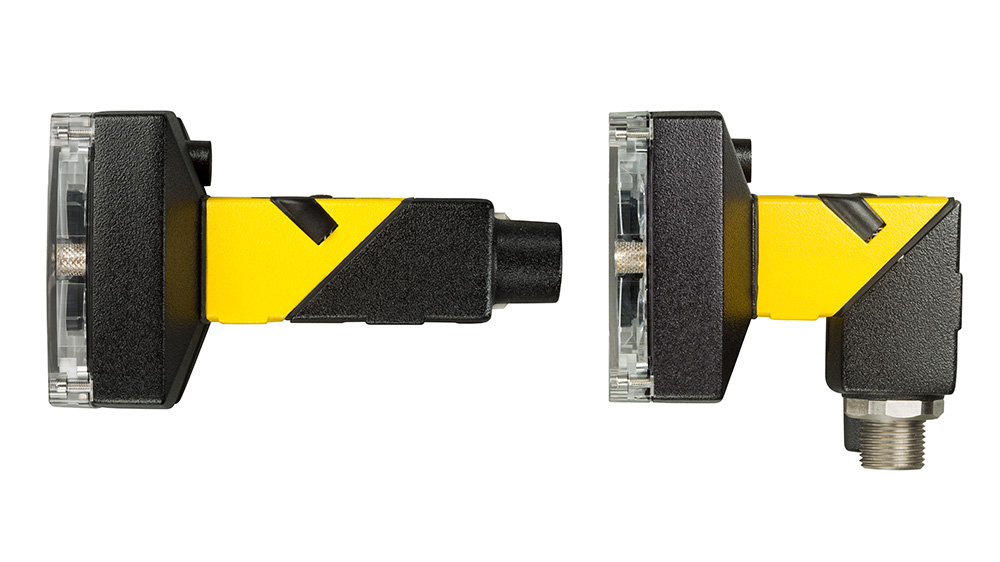

In-line configuration: 92 mm (3.61 in) x 60 mm (2.38 in) x 52 mm (2.05 in)
Right-angle configuration: 61 mm (2.42 in) x 60 mm (2.38 in) x 52 mm (2.05 in)
|
| Weight |
200 g (7.05 oz) |
| Material and Protection |
Painted aluminum, IP65-rated housing |
| Operating |
Power |
24 VDC ±10%, 48 W (2.0 A) maximum when the illumination is on |
| Temperature |
0°C to 40°C (32°F to 104°F) |
