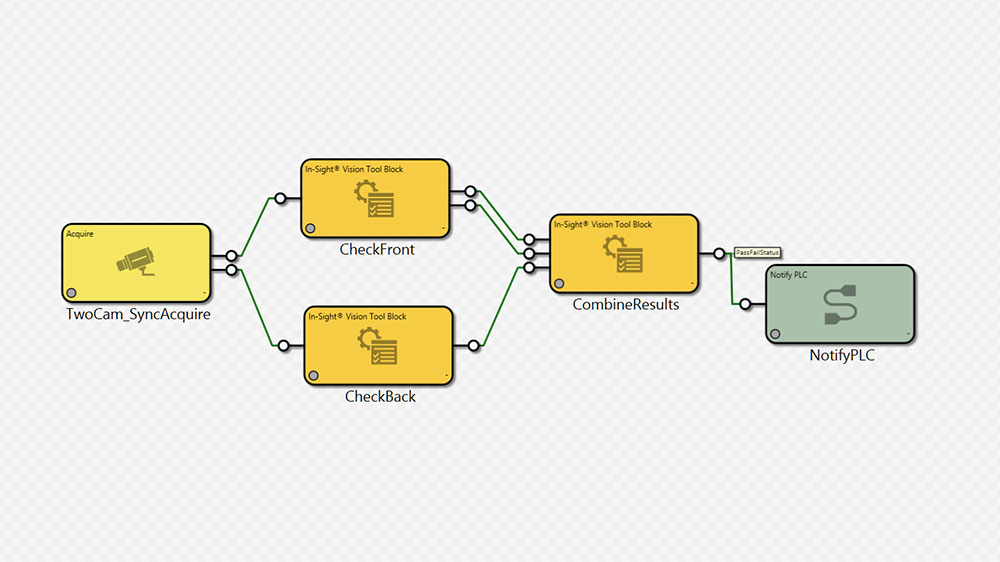

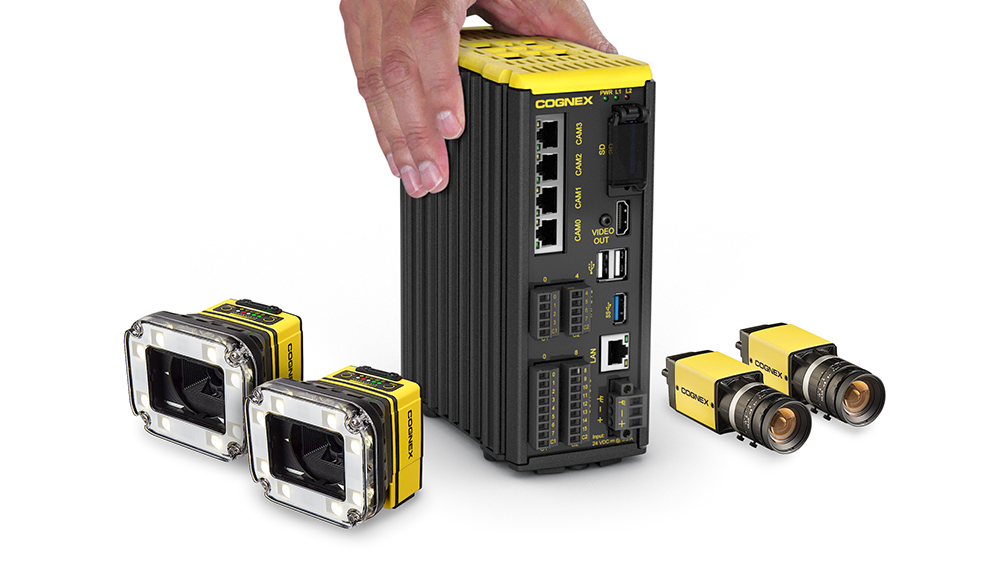

Supported Cognex Devices
|
ISC8200, ISC8400, ISC8401, ISC8402, ISC8405 , ISC7600, ISC7800, ISC7801, ISC7802, ISC7900, ISC7902
|
|
Job/Program Memory
|
8 GB non-volatile flash memory. Unlimited storage via remote network device
|
|
Image Processing Memory
|
2 GB SDRAM
|
|
Cooling System
|
Fanless Design
|
|
Inputs
|
8 optically isolated discrete inputs
|
|
Outputs
|
16 optically isolated discrete outputs
|
|

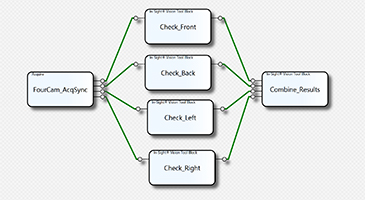

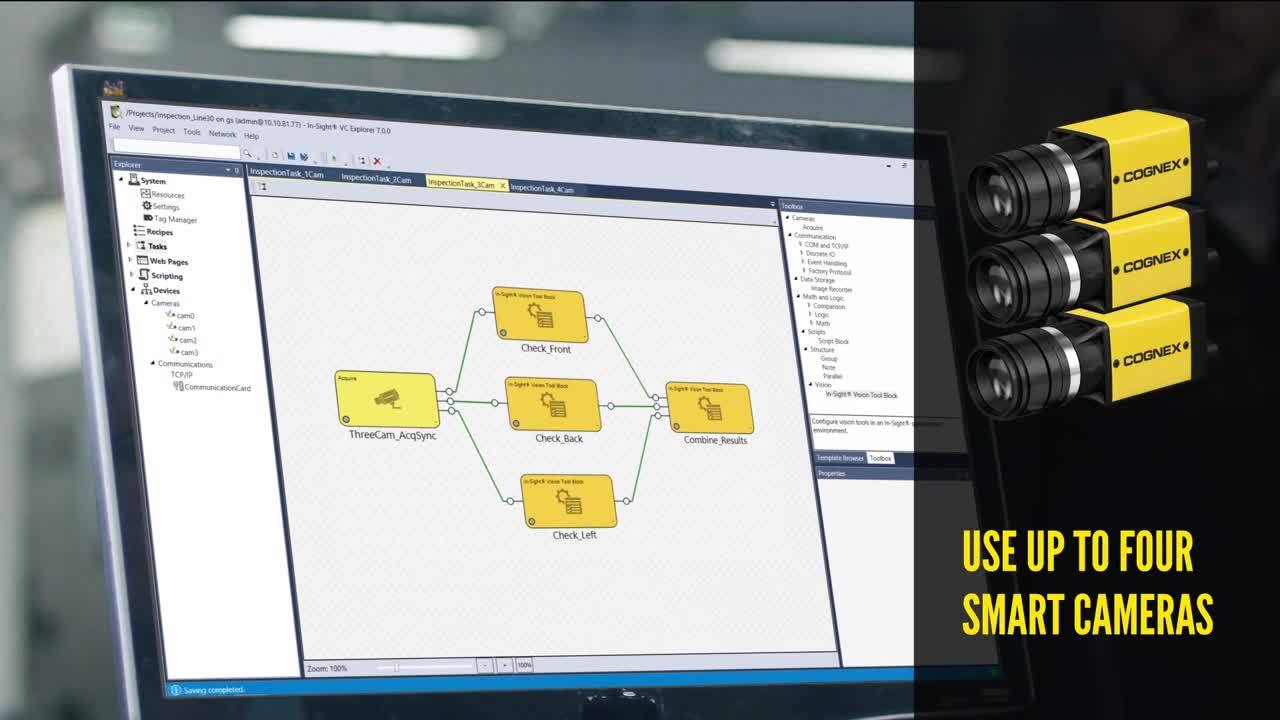

Camera Ports1
|
4 RJ-45 dedicated Ethernet ports for connecting directly to supported In-Sight cameras, additionally supplying Power over Ethernet
|
|
LAN Port2
|
1 RJ-45 Ethernet port, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Dedicated port for connecting to wide area network
|
|
USB Ports3
|
1 host USB 3.0 port (5 Gb/sec.) and 2 host USB 2.0 ports (480 Mb/sec.) ports for connecting mouse, keyboard or storage device
|
|
SD Card Slot
|
1 SD card slot for saving images, run time files and results. SD cards should be USH-I or USH-II and formatted with a FAT32 file system
|
|
Video Out Port
|
1 locking HDMI port that provides connection to a display device
|
|
I/O Terminal Connectors
|
16–26 AWG, solid or stranded wire. Torque 0.25 Nm (2.2 in-lb)
|
|
24VDC Power Connector
|
14–18 AWG, solid or stranded wire. Torque 0.6 Nm (5.3 in-lb)
|
|
Status
|
LEDs PWR LED, LED 1, LED 2
|
|
Housing
|
Aluminum, steel sheet metal, injection-molded housing
|
|
Mounting
|
Four bottom and four backside M4 x 0.7 threaded mounting holes. The vision controller may be optionally mounted using the accessory wall mounting bracket (BKT-WALL-VC200-01) or to a 35x15 mm DIN rail, using the accessory DIN rail mounting bracket (BKT-DIN-VC200-01)
|
|
Dimensions
|
178.8 mm (7.04 in) x 142.1 mm (5.59 in) x 75.1 mm (2.96 in)
|
|
Weight
|
1.45 kg (3.2 lb)
|
|
Current
|
3.5 A (maximum)
|
|
Voltage
|
24 VDC ± 10%
|
|
Power Consumption
|
84 W (maximum)
|
|
Operating Temperature
|
0 °C to 45 °C (32 °F to 113 °F)
|
|
Storage Temperature
|
-30 °C to 80 °C (-22 °F to 176 °F)
|
|
Humidity
|
10%–85%, non-condensing (Operating and Storage)
|
|
Altitude
|
2,000 m (6565 ft)
|
|
Protection
|
IP30
|
|
Shock (Storage and Shipment)
|
30 G, per IEC 60068-2-7EA
|
|
Vibration (Storage and Shipment)
|
2 G, 2 hrs/axis (10-500 Hz) per IEC 60068-2-6, FC
|
|
Regulatory Compliance
|
CE, FCC, KCC, TÜV SÜD NRTL, RoHS
|
