Cognex barcode verification technology ensures the readability and compliance of 1D and 2D barcodes to industry standardization guidelines. Today most companies spot check codes one at a time using an offline, operator-based verifier which can be slow and cumbersome.

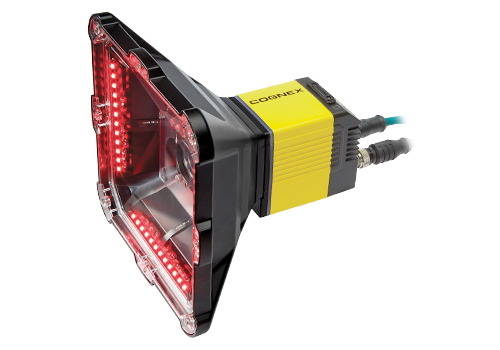

The DataMan 475V series inline barcode verifier can grade up to 20 codes per second. High-speed 100% verification and quality reporting can be done directly on your production line, preventing product waste and costly chargebacks. Immediate feedback and intuitive visual diagnostics provide operators with the ability to identify and correct printing and process control issues as they happen. For every code verified, detailed reports can be archived to ensure traceability, statistical process control, and compliance.
DataMan 475V-label | DataMan 475V-DPM | |
---|---|---|
Lighting Types | 660 nm, 45°, 4-quadrant |
660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° |
Symbologies |
1D: UPC/EAN, Code 128, ITF-14, I25, Code 39, Code 93, Codabar 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, PDF417 |
2D: Data Matrix (ECC 200), QR Code, Micro QR Code, UPC/EAN, Code 128, Code 39 |
Field of View | 80 x 60 mm | 35 x 29 mm |
Working Distance | 60 mm | 41 mm |
Depth of Field (WD Tolerance) | +/- 3 mm |
5 mil symbols: +/- 1.5 mm 15 mil symbols: +/- 2.5 mm |
Minimum X-Dimension | 6 mil (0.15 mm) | 3.75 mil (0.095 mm) |
Image Sensor |
Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels |
|
Lens Type | 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) |
Communications | Ethernet | |
Power Consumption | 24 VDC±10%, 1.5 A max (36 W peak) | |
Weight | 945 g | 1002.7 g |
Dimensions | 185 x 185 x 175 mm | 286 x 144 x 190 mm |
Environmental Protection | IP65 | IP65 with cables and appropriate lens cover attached |
Approvals | CE, TUV, FCC, KC | |
Industry Standards Compliance | ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2 | |
Application Standards | GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards | |
Maximum Codes per Second |
1D: 20 codes/second* 2D: 10 codes/second* |
2D: 10 codes/second* |
Maximum Linear Line Speed | 3.6 ft/second (1.1 m/second) | 4.6 ft/second (1.4 m/second) |
Coplanarity Tolerance | +/- 3° of coplanar | +/- 2° of coplanar |
