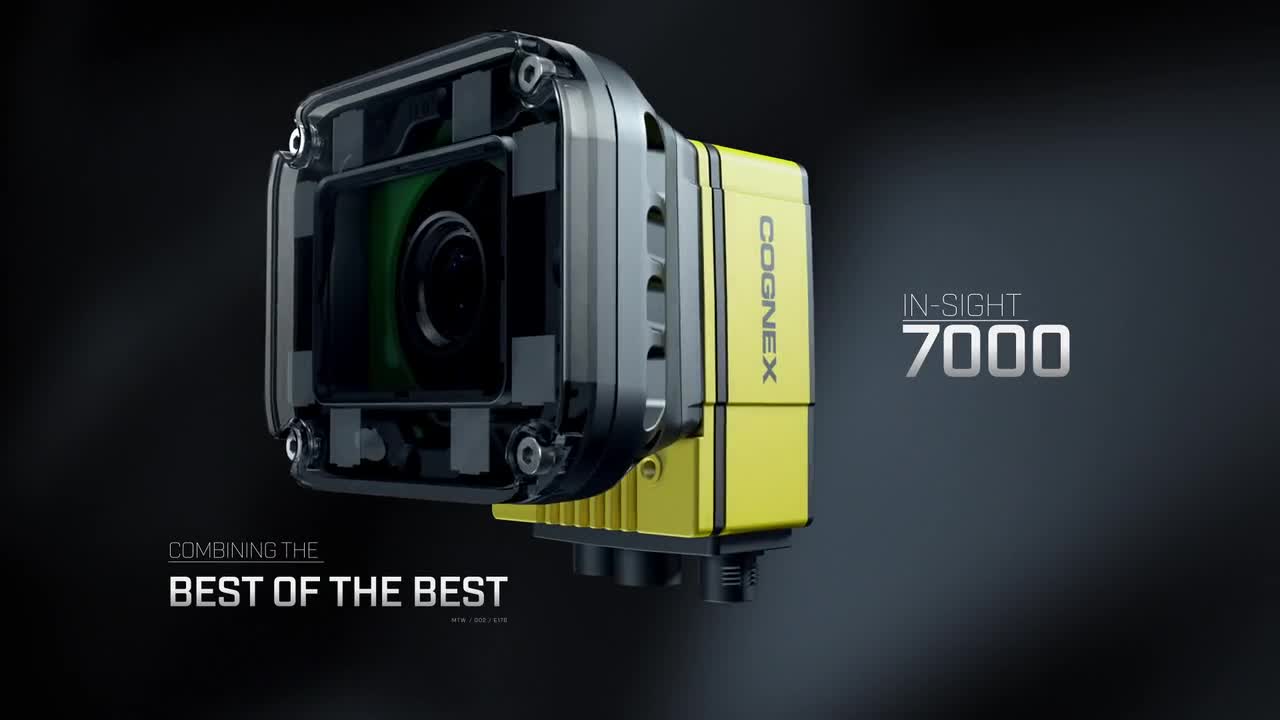

In-Sight 7000Series Vision Systems
In-Sight 7000Series Features

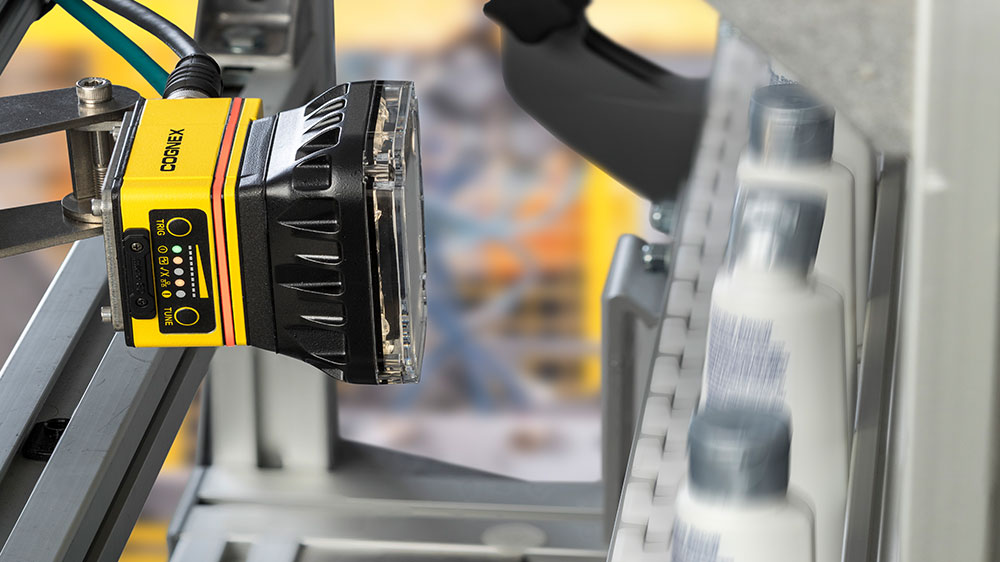

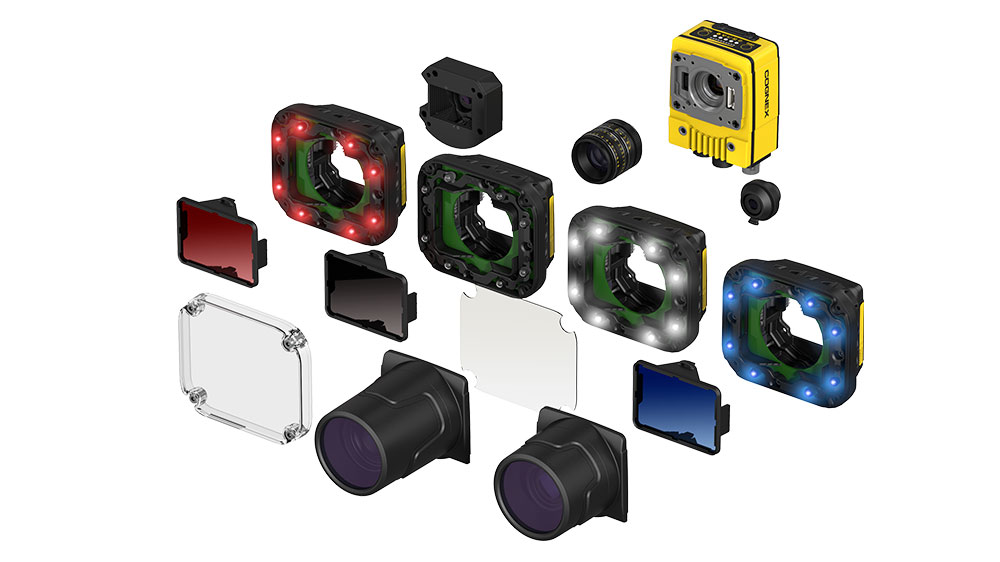

The In-Sight 7000 series is a full-featured, powerful vision system that performs fast, accurate inspections of a wide range of parts across all industries. Its compact footprint easily fits into space-constrained production lines and the unique, modular design is highly field-customizable to your application requirements. Along with the internal and external power/control lighting options, the In-Sight 7000 series also has a highly visible pass/fail LED indicator light ring around the camera body, making it easy to see the inspection status no matter where the system is installed.

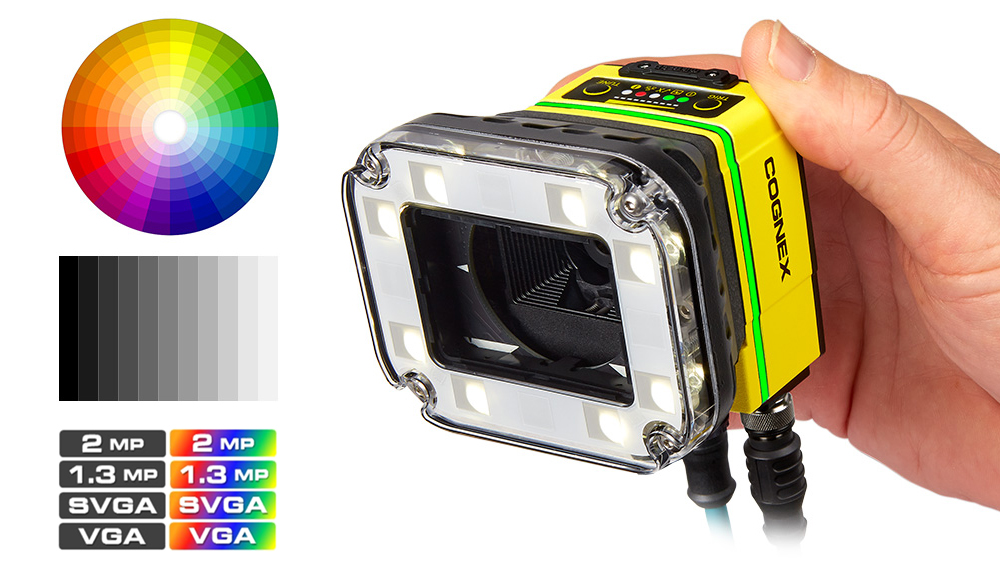

The In-Sight 7000 series is available in a wide range of resolutions including VGA (640x480)/SVGA (800x600), 1.3MP, 2MP, and the new In-Sight 7905 5MP system. Each resolution is available in monochrome or color.
In-Sight 7000 Series Models and Specifications

In-Sight 7600 In-Sight 7800 In-Sight 7801 In-Sight 7802 In-Sight 7900 In-Sight 7901 In-Sight 7902 In-Sight 7905
Image Type Monochrome and color
Performance Factor 1X 2.3X 2.5X
Job/Program Memory 512 MB on board + 8 GB on SD card
Image Processing Memory 512 MB SDRAM
Additional Storage 8 GB SD card, network drive via FTP over gigabit network
Sensor Type CMOS, global shutter
Resolution 640 x 480/800 x 600 (software configurable) 1280 x 1024 1600 x 1200 640 x 480/800 x 600 (software configurable) 1280 x 1024 1600 x 1200 2448 x 2048
Acquisition Rate (fps) 217/165 (monochrome) 76 (monochrome) 53 (monochrome) 217/165 (monochrome) 76 (monochrome) 53 (monochrome) 32 (monochrome)
135/100 (color) 45 (color) 33 (color) 135/100 (color) 45 (color) 33 (color) 17 (color)
Lens Type C-mount/S-mount/Autofocus C-mount

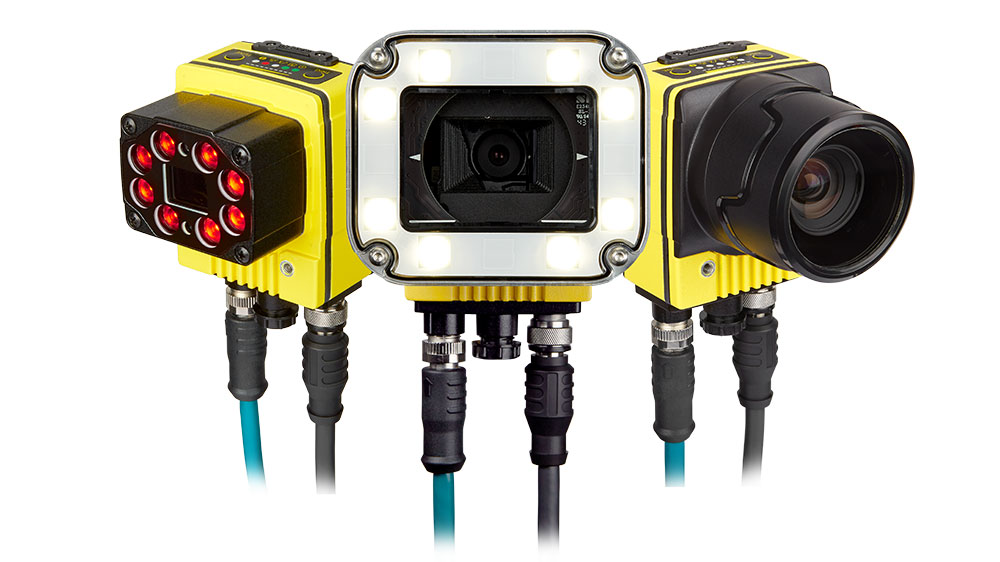

Light Options Internal light, DataMan 360 light; External light powered by In-Sight 7000; External light independent power Internal light, External light powered by In-Sight 7000; External light independent power
Internal Light Color Red, white, IR, blue
Indicator LEDs SD card status, pass/fail LED and 360-degree viewing indicator ring, network LED and error LED
Built in I/O 1 dedicated trigger in, 2 inputs, 2 outputs, 2 bi-directional/configuable. Additional IO available via external IO modules: CIO-MICRO or CIO-1400
Power 24 VDC
Industrial M12 Connectors 3: Power/IO; Ethernet; External light power/control
Protection IP67 with internal light option or C-mount lens cover
Network Communications 1G (1000)/100/10 Mbps
IEEE 1588 Support Timestamp resolution: 8 ns
Synchronization accuracy through transparent clock: 5 μs
Rockwell Add-on profile Yes
