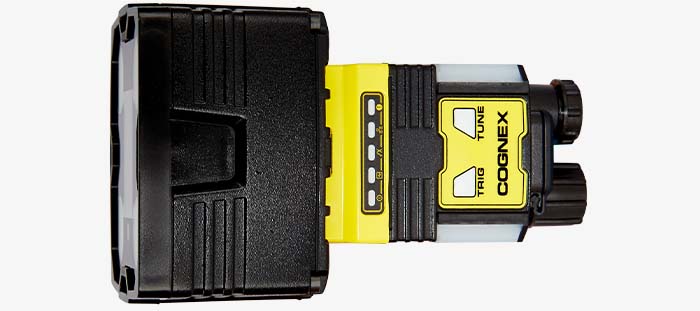

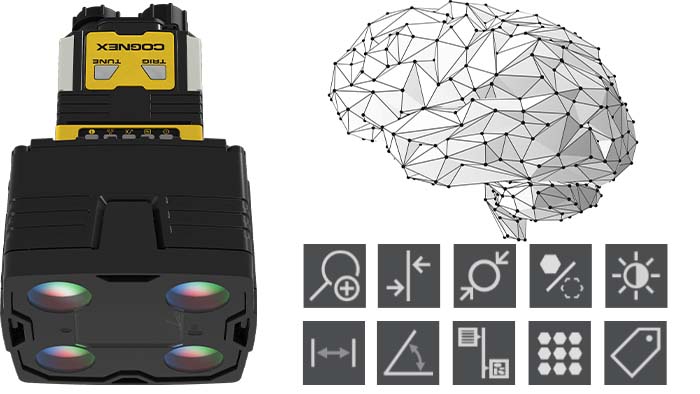

The In-Sight 2800 vision system combines artificial intelligence (AI) with traditional rule-based vision tools to solve a wide range of applications. From presence/absence detection to sortation and character reading, In-Sight 2800 provides an easy to deploy solution for error-proofing.
Designed for factory automation, In-Sight 2800 enables manufacturers of all sizes to:
In-Sight 2800 | In-Sight 2801 | In-Sight 2802 | |
---|---|---|---|
Image Sensor | 1 /2.8" CMOS monochrome and color | ||
Image Sensor Properties | 6.17 mm diagonal, 2.8 µm square pixels | ||
Image Resolution Options | SVGA1 (720x540) | 1.6 MP (1440x1080) | 2 MP (1920x1080) |
Electronic Shutter Speed |
Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination) |
||
Acquisition | Up to 45 Hz | ||
Lens Options |

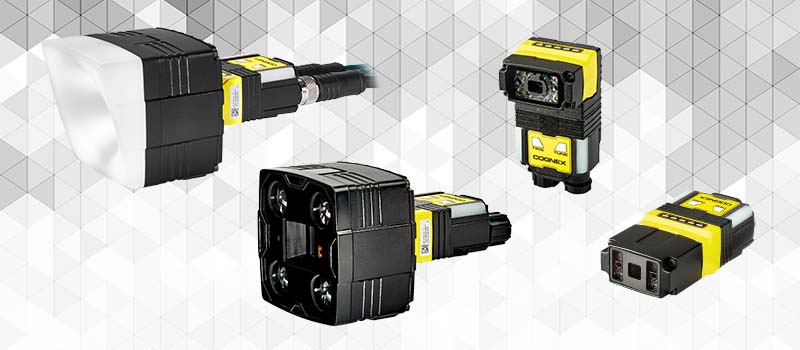

Multi Torch: 8 mm, 12 mm, 16 mm (High Speed Liquid Lens or manual focus lens) Mini: 6.2 mm or 16 mm High Speed Liquid Lens |
Multi Torch: 12 mm, 16 mm (High Speed Liquid Lens or manual focus lens) | |
Discrete Inputs | 2 opto-isolated | ||
Discrete Outputs | 2 opto-isolated | ||
Other I/O Points | 2 user configurable as inputs or outputs | ||
Status Outputs | 5 status LEDs, audible beeper | ||
Lighting |
Multi Torch: High-Powered Multi-Color 4 LED ring light (red, green, blue, white) Mini: 4 LED small form factor light for 6.2mm lens (red, blue, white, IR options) Mini HPIL: 4 LED small form factor high-powered light for 16 mm lens (red, white options) |
Multi Torch: High-Powered Multi-Color 4 LED ring light (red, green, blue, white) | |
Communications | Ethernet interface | ||
Protocols | TCP/IP, PROFINET, EtherNet/IP™, SLMP, OPC/UA, FTP | ||
Power | 24V +/- 10% | ||
Power Consumption | ≤7.5W | ||
Material | ABS, Acrylic, Aluminum alloy, NBR, PC, PET, PMMA, Silicone, Silicone rubber, Stainless steel, TVP, Zinc alloy | ||
Weight |
6.2 mm: 141 g; 16 mm: 169 g; Multi Torch: 290 g; Right angle configuration adds 50 g |
||
Operating Temperature | 0–40 °C (32–104 °F) | ||
Storage Temperature | -10–60 °C (14–140 °F) | ||
Operating and Storage Humidity | <95% non-condensing | ||
Protection | IP67 | ||
RoHS Certified | Yes | ||
Approvals | EU CE, US FCC, TUV CB NRTL IEC 61010 | ||

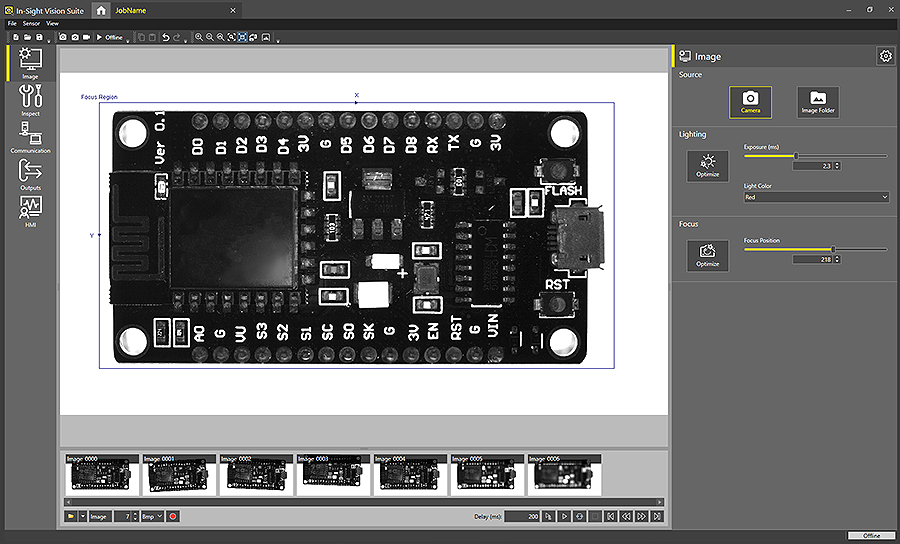

Software | In-Sight Vision Suite | ||
In-Sight EasyBuilder access |
✓ |
✓ |
✓ |
In-Sight spreadsheet access |
✓ |
