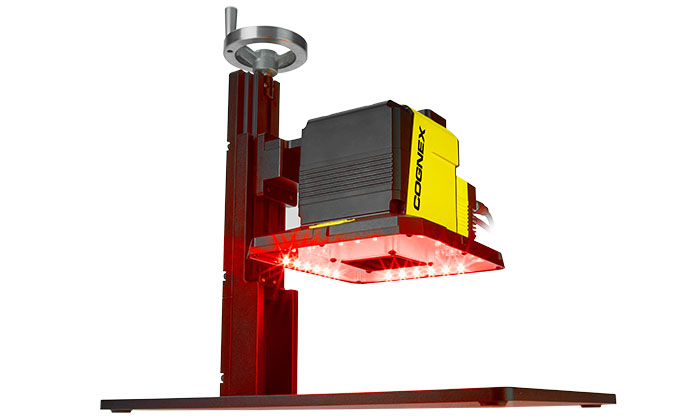

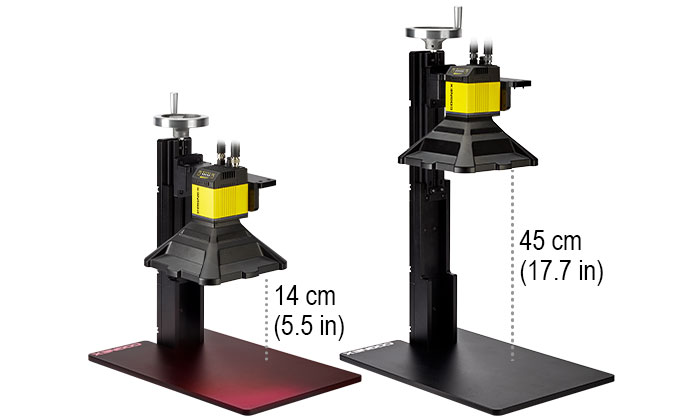

The DataMan 475VS series offers robust grading algorithms, diagnostic tools, and reporting options for offline barcode verification. The adjustable stand and built-in software focusing feature provide users with an easy, fast, and accurate way to present labels and parts.
DataMan 475VS-Label | DataMan 475VS-DPM | DataMan 475VS-HD | ||
---|---|---|---|---|
Lighting Types | 660 nm, 45°, 4-quadrant |
660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° |
660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° |
|
Symbologies |
1D: UPC/EAN, Code 128, ITF-14, I25, Code 39, Code 93, Codabar 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, PDF417 |
1D: UPC/EAN, Code 128, Code 39 2D: Data Matrix (ECC 200), QR Code, Micro QR Code |
1D: UPC/EAN, Code 128, Code 39 2D: Data Matrix (ECC 200), QR Code, Micro QR Code |
|
Field of View | 80 x 60 mm | 35 x 29 mm | 11 x 9 mm | |
Working Distance | 60 mm |
41 mm with side lighting attachment 71 mm without side lighting attachment |
41 mm with side lighting attachment 71 mm without side lighting attachment |
|
Depth of Field (WD Tolerance) | ±3 mm |
5 mil codes: ±1.5 mm 15 mil codes: ±2.5 mm |
1 mil codes: ±0.2 mm 4 mil codes: ±0.8 mm |
|
Minimum X-Dimension | 6 mil (0.15 mm) | 3.75 mil (0.095 mm) | 1 mil (0.025 mm) | |
Image Sensor |
Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels |
|||
Lens Type | 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 75 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | |
Communications | Ethernet | |||
Power Consumption | 24 VDC±10%, 1.5 A max (36 W peak) | |||
Weight | Verifier | 945 g | 1002.7 g | 2245 g |
Stand | 6191.5g | |||
Dimensions | Verifier | 185 x 185 x 175 mm | 286 x 145 x 193 mm | 360 x 145 x 193 mm |
Stand | 485.73 x 424 x 280 mm (638.13 x 424x 280 mm with extension arm) | |||
Environmental Protection | IP67 | IP65 | IP65 | |
Approvals | CE, TUV, FCC, KC | |||
Industry Standards Compliance | ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2 | |||
Application Standards | GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards | |||
Maximum Codes per Second | 1D and 2D: 4 seconds/code* | 2D: 4 seconds/code* | Application dependent | |
Maximum Linear Line Speed | 3.6 ft/second (1.1 m/second) | 4.6 ft/second (1.4 m/second) | Application dependent | |
Coplanarity Tolerance | ±3° of coplanar | ±2° of coplanar | ±0.1° of coplanar |
