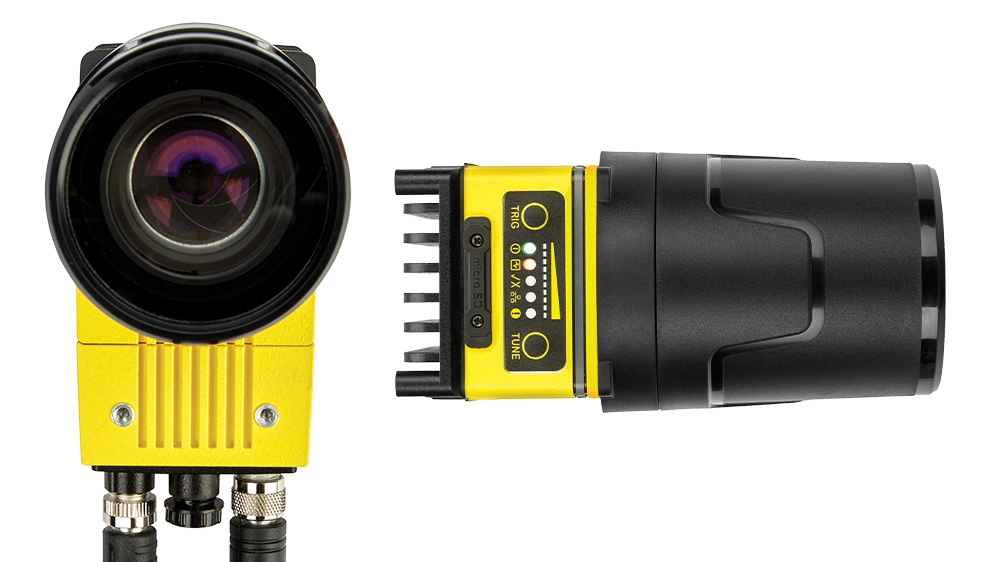

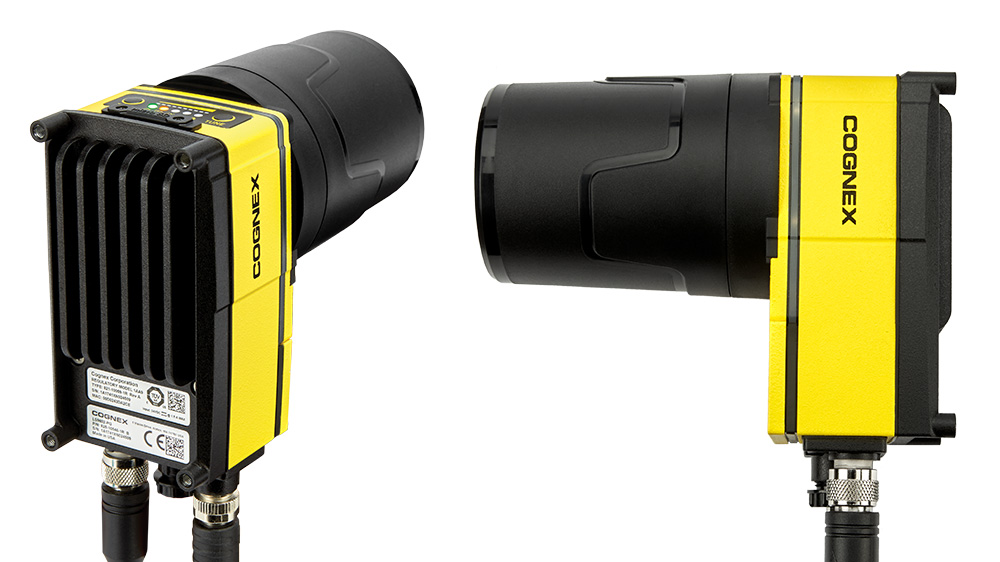

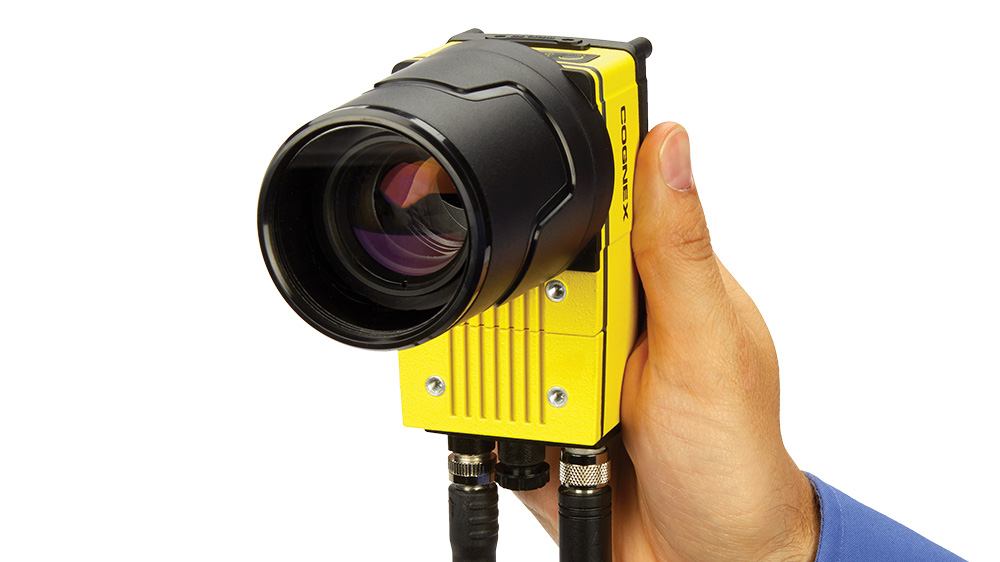

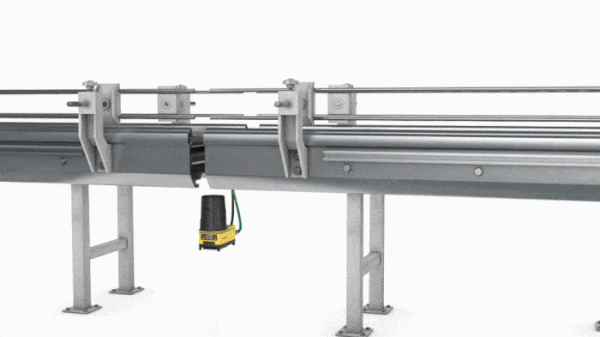

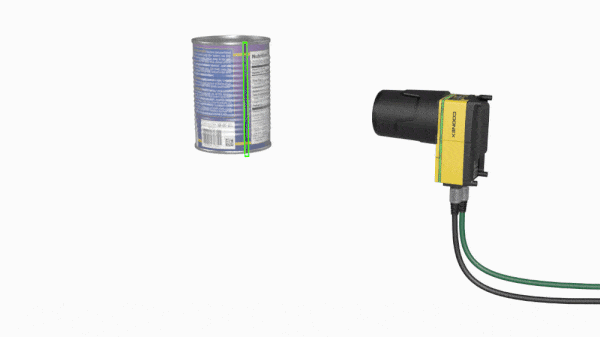

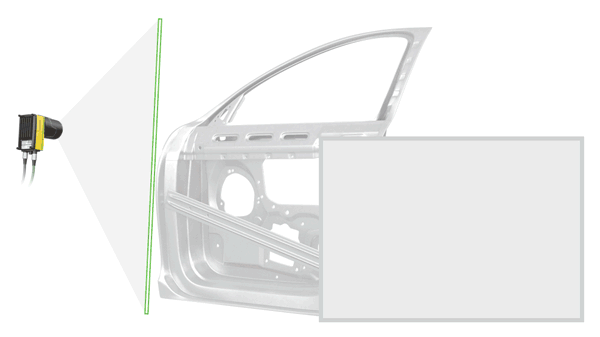

In-Sight 9902L Series Specifications
.
|
|
Image Type
|
Monochrome
|
Job/Program
|
7.2 GB non-volatile flash memory
|
Image Processing Memory
|
512 MB SDRAM
|
Additional Storage
|
8 GB SD card, network drive via FTP over gigabit network
|
Sensor Type
|
CMOS, global shutter
|
Resolution (pixels)
|
2048 x 1; 2048 x 16384 (up to 16384 lines) software configurable, or 1024 x 1; 1024 x 16384 (up to 16384 lines) software configurable
|
Line Rate
|
66K lines per second (15 µs scan rate)
|
Lens Type
|
C-mount only
|
Indicator LEDs
|
SD card status, pass/fail LED and 360° viewing indicator ring, network LED, and error LED
|
Built-in IO
|
1 dedicated trigger in, 1 input, 2 outputs
|
Encoder Input
|
2 encoder line inputs for quadrature support
|
Encoder Input Voltage
|
5–24 VDC
|
Power
|
24 VDC
|
Industrial M12 Connectors
|
Power/IO; Ethernet; External light power/control (N/A)
|
Protection
|
IP67 with C-mount lens cover
|
Network Communications
|
1G (1000)/100/10 Mbps
|
IEEE 1588 Support
|
Timestamp resolution: 8 ns; Synchronization accuracy through transparent clock: 5 ns
|
Rockwell Add-on Profile
|
Yes
|
Vision Tools
|
Full vision tool suite with PatMax. Optional PatMax RedLine tool.
|
