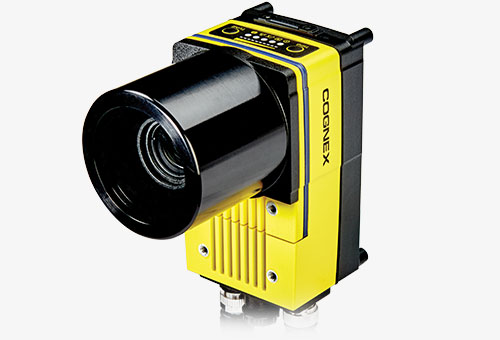

The In-Sight® D900 vision system automates complex applications that are too difficult to deploy with traditional, rule-based machine vision and require reliable, fast, and consistent results not possible with human inspection. Embedded with a full suite of both edge learning and deep learning tools, In-Sight D900 solves a range of tasks from defect detection to assembly verification and optical character recognition (OCR). Processing takes place on-device, which eliminates the need for a PC, simplifying application deployment and bringing the power of artificial intelligence (AI) to non-programmers.
D905M | D905C | D902M | D902C | ||
---|---|---|---|---|---|
Image Type | Monochrome | Color | Monochrome | Color | |
Imager Type | 2/3 inch CMOS (3.45 μm x 3.45 μm pixels) | 1/2.3 inch CMOS (3.45 μm x 3.45 μm pixels) | |||
Resolution (pixels) |
5 MP 2448 x 2048 |
2.3 MP 1920 x 1200 |
|||
Acquisition Speed (Max) | 26 fps | 16 fps | 51 fps | 34 fps | |
Memory | File storage | 16 GB non-volatile flash memory; unlimited storage via remote network device | |||
Processing | 3 GB SDRAM | ||||
Additional Storage | 8 GB micro SD card, network drive via FTP over gigabit network | ||||

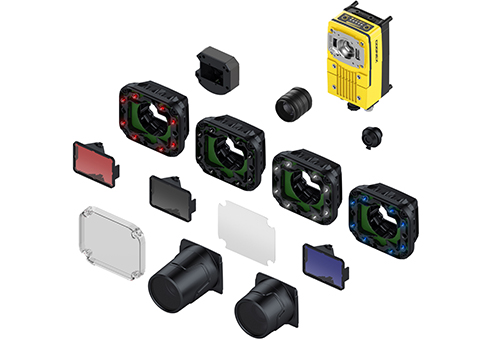

Optics | Lenses | C-Mount, S-Mount, Autofocus | |||
Indicator LEDs | SD card status, pass/fail LED and 360° viewing indicator ring, network LED, and error LED | ||||
Lighting | External lights via light control connector | ||||
I/O | Network | Gigabit Ethernet (10/100/1000 Mbps) | |||
Built-in | 1 dedicated trigger IN, 1 general purpose IN, 2 general purpose OUT, 2 bi-direction IN/OUT | ||||
Mechanical | Industrial M12 Connectors | Power/IO; Ethernet; External light power/control | |||
Dimensions | 53.4 mm (2.10 in) x 60.5 mm (2.38 in) x 121.0 mm (4.77 in) | ||||
Weight | 380 g (13.4 oz.) | ||||
Protection | IP67 with C-mount lens cover or integrated light connected | ||||
Power | 24 VDC |
