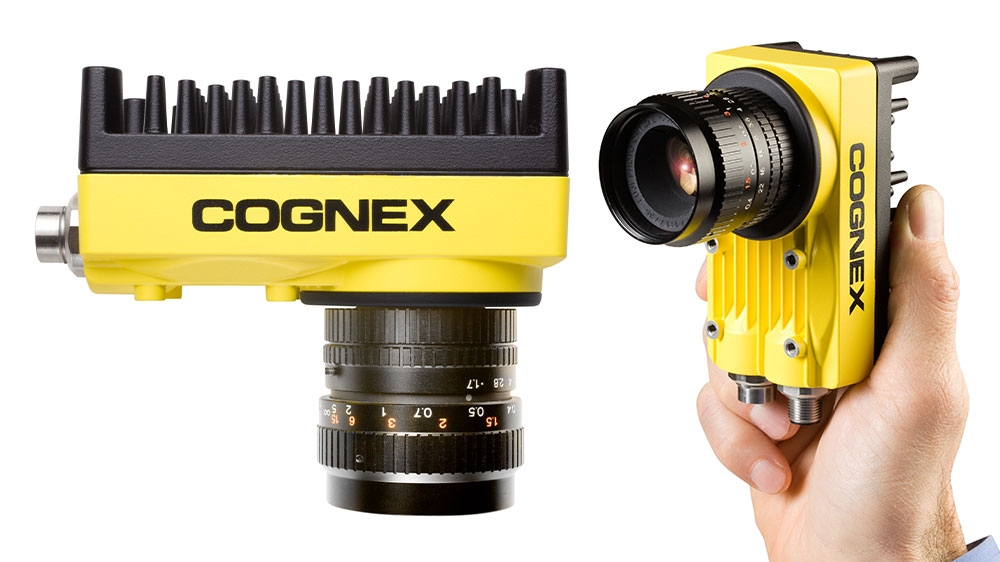

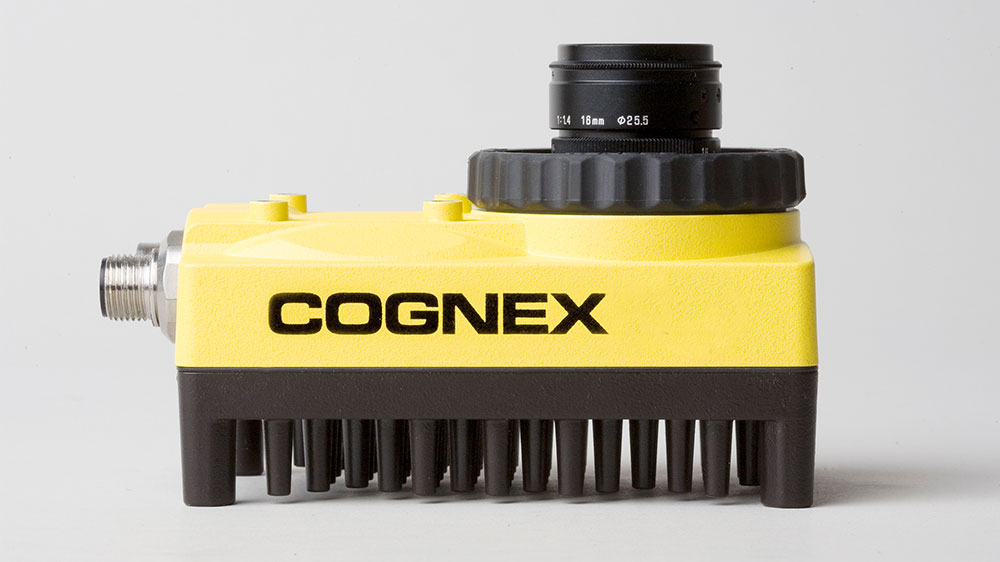

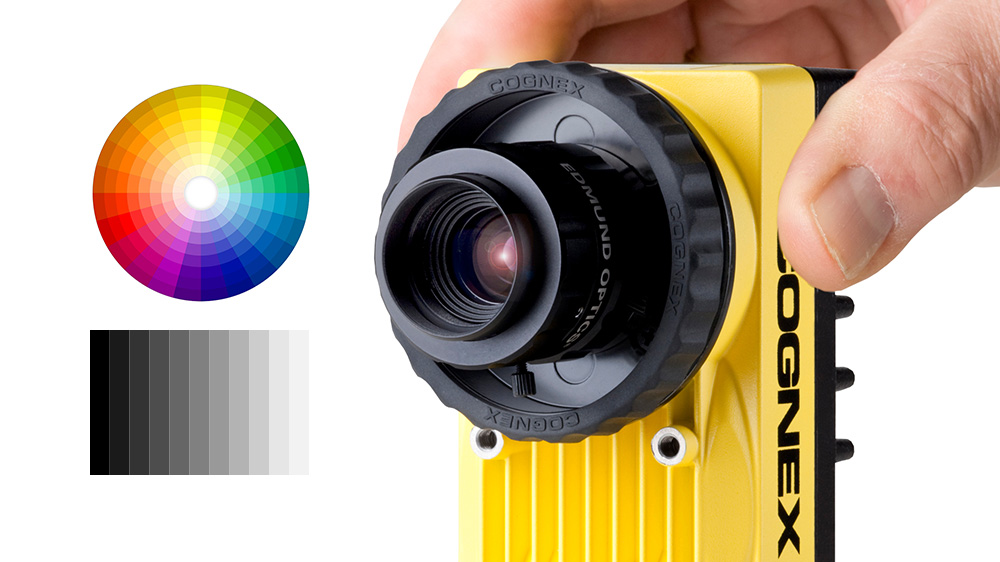

The In-Sight 5705 series offers high performance with high resolution making it the fastest 5MP self contained vision system in the world. The In-Sight 5705 color follows making it the only standalone 5 MP color vision system in the world! Both systems support Gigabit Ethernet and the new blazing fast PatMax® Redline™ tool.
5705 | 5705C | |
Connector type | M12 Ethernet, M12 Power/IO | |
Dimensions | 134.4mm (5.29in) x 124.1mm (4.88in) x 61.4mm (2.42in) with lens cover installed | |
Frames Per Second | 16 full frames per second | 14 full frames per second |
Discrete Inputs | 1 opto-isolated, acquisition trigger input. Additional inputs available using a compatible I/O module. Unlimited inputs when using an Ethernet I/O system | |
Discrete Outputs | 2 built-in, high-speed outputs. Additional outputs available using a compatible I/O module. Unlimited outputs when using an Ethernet I/O system | |
Ethernet Protocols | EtherNet/IP; PROFINET; Modbus/TCP; Melsec; TCP/IP; SMTP; FTP | |
GUI Interface | Spreadsheet and EasyBuilder | |
Image Processing Memory | 512MB SDRAM | |
IP Rating | IP 67 with lens cover on | |
Job/Program Memory | 128MB non-volatile flash memory; unlimited storage via remote network device | |

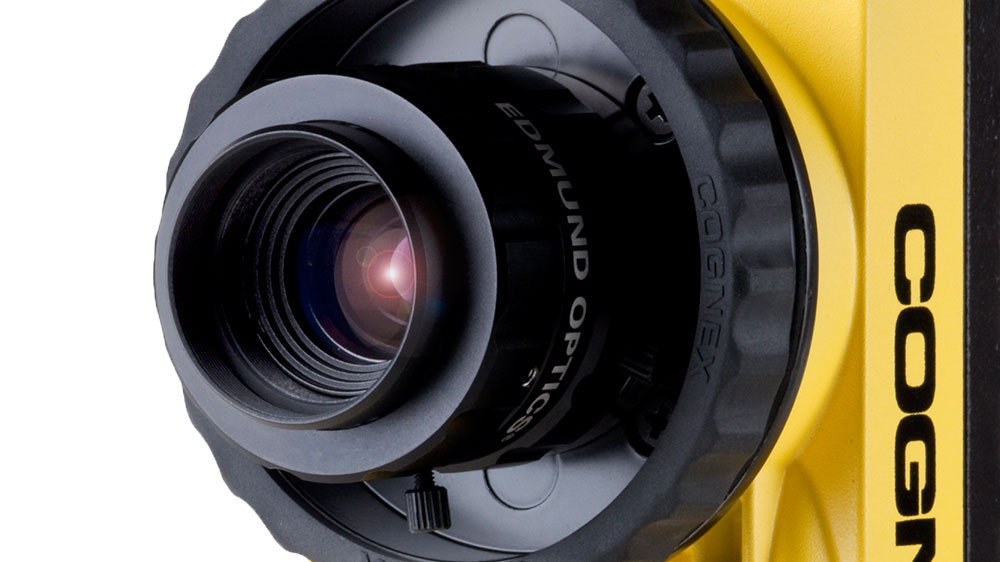

Lens Type | C-Mount | |
Material | Die-cast aluminum housing | |
Maximum Resolution (pixels) | 2448 x 2048 | |
Minimum Firmware Requirement | In-Sight Explorer 5.1.0 | |
Network Communication | 1 Ethernet port, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP protocol | |
Power Consumption | 24VDC ±10%, 600mA maximum | |
Sensor Type | 2/3-inch CCD, global shutter | |
Serial Communication | RS-232C | |
Status LEDs | Power, Network Status, Network Traffic, 2 user configurable |
