DataMan 8050 Series

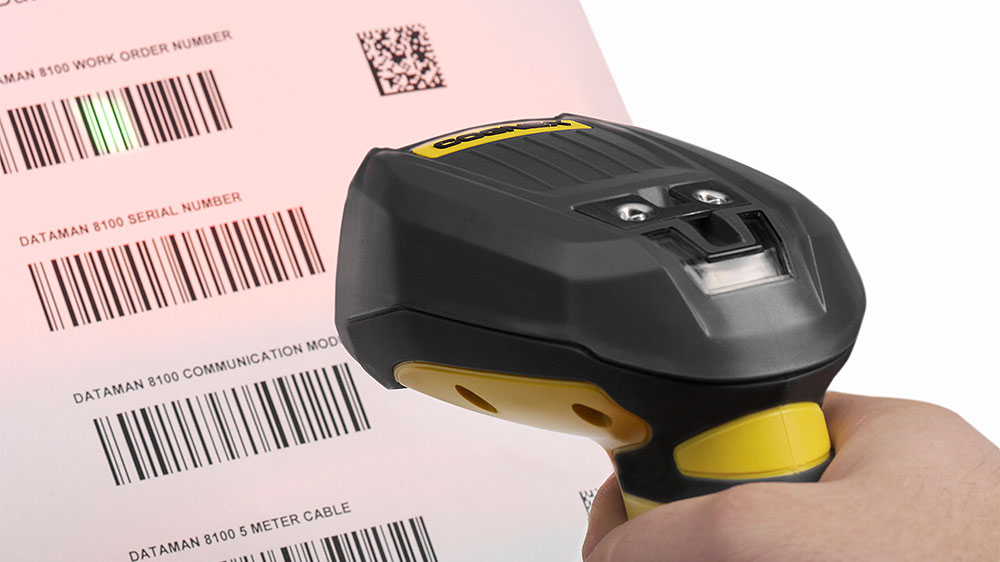

DataMan 8050 Series Handheld Barcode Reader

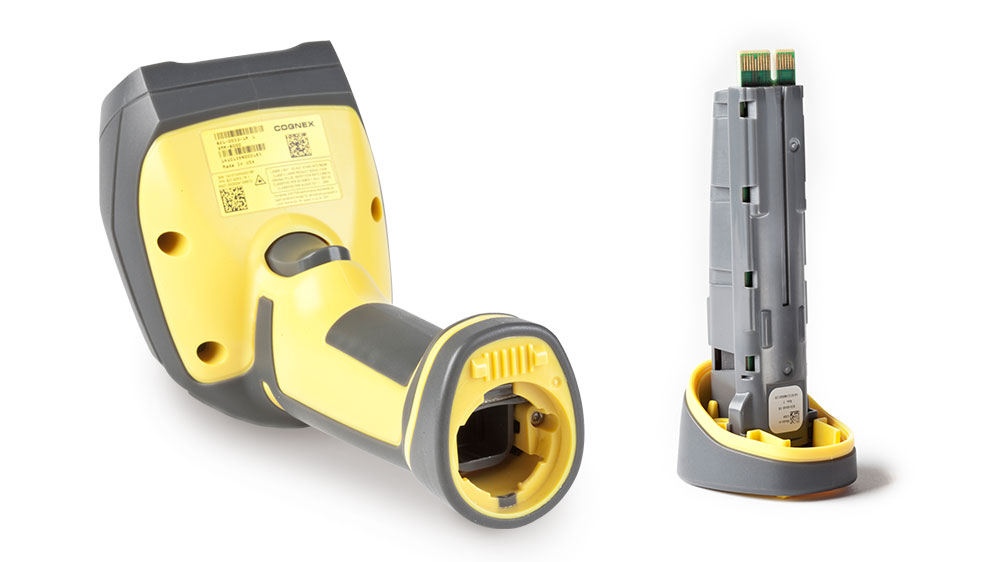

DataMan 8050 series readers are equipped with Cognex’s world-class barcode reading algorithms and designed to withstand harsh factory floor conditions. The best in class algorithms decode even challenging barcodes quickly and easily including Direct Part Mark (DPM) codes. And, the flexible modular design ensures the DataMan 8050 series readers are ready to meet ever changing communication needs.

DataMan 8050 Series Handheld Barcode Reader Models and Specifications

	DataMan 8050	DataMan 8050X	DataMan 8050HDX
1-D & Stacked Barcodes	Yes
2-D Codes	Yes
Algorithms	2DQuick/1DMax+/Hotbars	2DMax/1DMax+/Hotbars
Image Sensor	752 x 480 global shutter
Trigger	Handle trigger, presentation
Status Outputs	LED, beeper

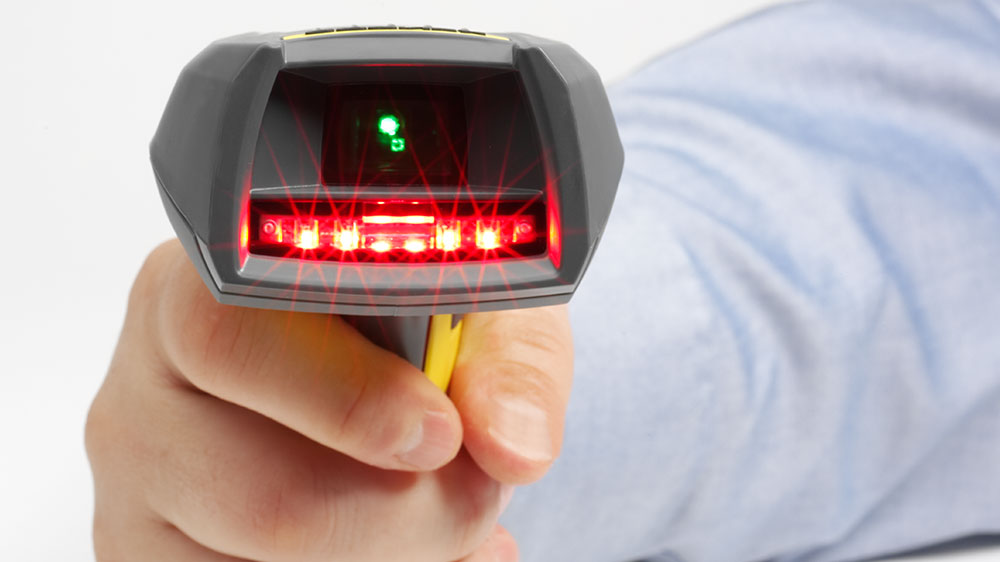

Aimer	Centralized LED aimer
Lens Options	Fixed focus
Lighting	Integrated LED with near/far optics

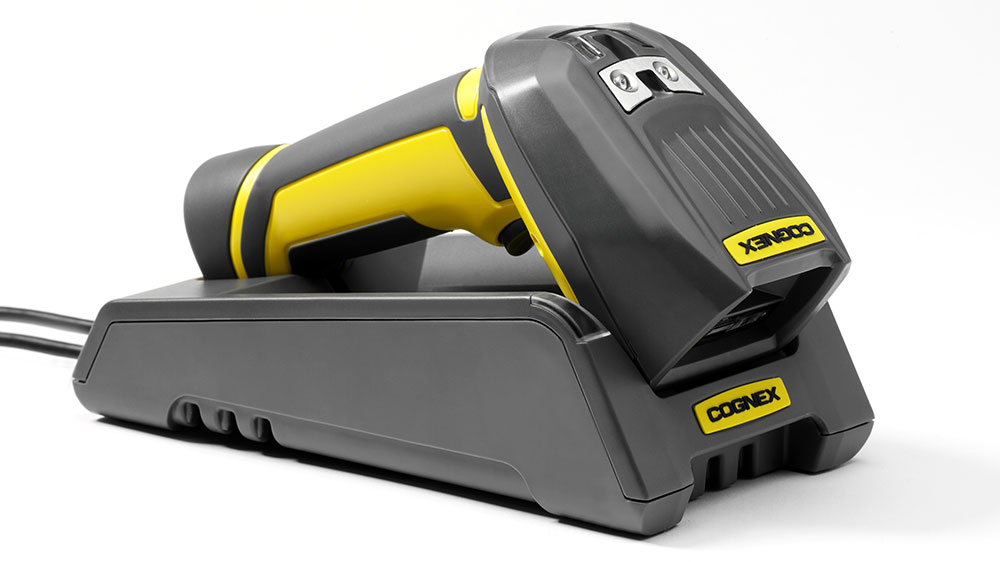

Communication	Serial module: RS-232, USB Ethernet module: TCP/IP, FTP, industrial protocols: Ethernet/IP, PROFINET, MC Protocol, ModBus TCP Intelligent base station: RS-232, USB, Ethernet, Industrial Protocols (optional) Bluetooth module communicates to intelligent base station Wi-Fi module communicates to intelligent Wi-Fi base station
Dimensions	210 mm x 155 mm x 85 mm
Depth of Field	7 mil 2-D Code: Up to 40 mm 10 mil 2-D Code: Up to 80 mm 6 mil Code39: Up to 90 mm		4 mil 2-D Code: Up to 55 mm 5 mil 2-D Code: Up to 75 mm
Protection		IP-65

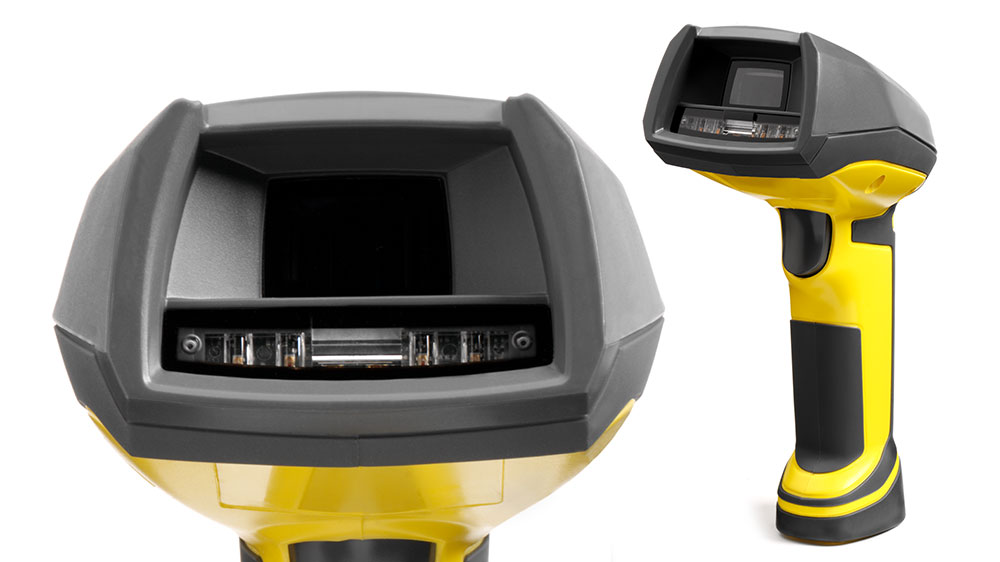

Rugged Industrial Design

The DataMan 8050 series barcode readers are constructed to handle the harshest environments. Industrial features include: lanyard hook for easy retractor mounting, bright centralized aimer for clear targeting, loud beeper and indicator lights provide operator feedback.
